Robotic lab enhances battery manufacturing

New chemistries for batteries, semiconductors and more could be easier to manufacture, thanks to a new approach to making chemically complex materials that researchers at the University of Michigan and Samsung’s Advanced Materials Lab have demonstrated.

Their new recipes use unconventional ingredients to make battery materials with fewer impurities, requiring fewer costly refinement steps and increasing their economic viability.

“Over the past two decades, many battery materials with enhanced capacity, charging speed and stability have been designed computationally, but have not made it to market,” said Wenhao Sun, the Dow Early Career Professor of Materials Science and Engineering at U-M and the corresponding author of the study published in Nature Synthesis.

“A lot of times, a simple material is a good starting point, but when you add a little bit of compound A and a little bit of compound B, magic happens and you get big improvements in capacity or charging rate. However, these chemically complex materials are often difficult to manufacture at scale with high purity.”

Battery materials are typically made by mixing several different oxide powders and firing them in an oven. However, these powders react in a sequence rather than all at the same time. The first two ingredients to react are usually those that release the most energy upon reacting. The first reaction results in an intermediate compound that then reacts with the remaining powder, and so on, until no more reactions are possible.

If the chemical bonds in the intermediate compounds are difficult to break, they might not fully react with the other ingredients. When they don’t fully react, the intermediates hang around as undesired impurities in the final material.

Image caption: This reaction diagram shows how the order in which battery ingredients are mixed could impact the overall efficiency and purity of the desired material. To make lithium barium borate (LiBaBO3), chemists have to mix boron trioxide (B2O3), barium oxide (BaO), and lithium oxide (Li2O) and heat them in a furnace. When mixing these ingredients, an intermediate compound can temporarily form before the desired material. Because low-energy compounds are very stable, they are slow to react to form the final desired product, meaning they stick around as impurities in the final yield. However, if boron trioxide and lithium oxide are separately mixed first (the higher path in the chart), then the intermediates are less stable, so they will quickly form the final product with fewer impurities. Image credit: Jiadong Chen, Wenhao Sun Research Group, University of Michigan.

“We designed a strategy to make impurity-free materials more reliably,” said Jiadong Chen, the first author of the study and a U-M doctoral student in materials science and engineering and scientific computing. “The trick is to only work with two ingredients at a time, and deliberately make unstable intermediates that will react completely with the remaining ingredients.”

To test this strategy, Sun’s team designed 224 different recipes to create 35 different known materials containing elements used in today’s batteries and next-generation ‘beyond-lithium’ batteries.

The researchers then partnered with Samsung Semiconductor’s Advanced Materials Lab in Cambridge, Massachusetts, to test if their recipes produced these 35 materials with fewer impurities than conventional recipes. Samsung’s automated robotic lab can synthesise up to 24 different battery materials every 72 hours.

Robotic arms handle the ingredients and operate the lab equipment that assesses the purity of the resulting materials. Meanwhile, computers automatically record the results of each experiment, creating a database that researchers can use to determine which recipes worked best.

“With the automatic lab, we could broadly test our hypothesis on diverse battery chemistries,” Chen said.

The experiments confirmed that the new recipes with ingredients designed to be unstable tended to produce cleaner products. The new recipes improved the materials’ purity by up to 80%, and six of the target materials could only be made with new recipes.

Blueprints for the robotic lab were detailed in the team’s report, which Sun hopes will enable more chemistry labs to adopt robotic labs for both science and materials manufacturing.

“We need more data — not just from successful recipes but also the unsuccessful ones — to improve materials manufacturing strategies. More robotic labs will help generate the needed data,” Sun said.

These labs are within reach for most research institutions and could significantly speed up materials development, the researchers said.

“The start-up cost for the robotic equipment is about $120,000 — not as high as you might think. But the payoffs in throughput, reliability and data-management are invaluable,” said study co-author Yan Eric Wang, principal engineer and project manager of Samsung’s Advanced Materials Lab.

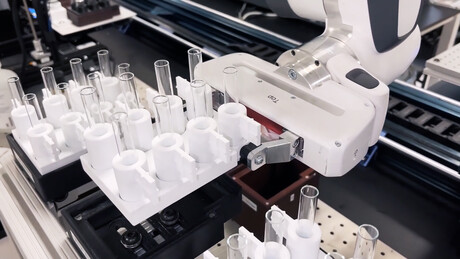

Top image caption: ASTRAL, Samsung’s robotic lab, uses automated robotic arms to manipulate lab equipment, reagents and samples. As the lab makes battery materials according to a pre-programmed recipe, it automatically records data on the quality of the materials along the way. The records allow researchers to evaluate a large number of recipes in a reproducible manner. Image credit: Advanced Materials Lab, Samsung Advanced Institute of Technology-America, Samsung Semiconductor.
