Li-Fi GigaDock transceivers enhance satellite sustainability

To make satellites more sustainable, they should be created in a modular system in the future so that individual components can be replaced, thus extending the satellite service life. To ensure a problem-free interface between the components, the Fraunhofer Institute for Photonic Microsystems IPMS has developed a transceiver that guarantees data transfer between the components. This has been on board the ISS (International Space Station) for testing purposes since February 2022.

The international consensus among the space industry regarding the modularity of future satellite systems is that they should be able to be flexibly disassembled and reassembled as in a modular system. The advantage of modular plug-and-play systems is that defective components can be replaced, thus significantly increasing the service life and function of a satellite. At the end of their lifetime, satellites either burn up in the Earth’s atmosphere or remain in Earth orbit. As a consequence, space debris is produced, which generates enormous costs and effort and can become a real danger to life in manned space flight. The new generation of satellites will therefore replace the traditional architecture with a more sustainable and modular concept.

In order to flexibly attach and detach modules directly in space, components that are easy to couple and standardise are particularly important. In addition to the mechanical coupling of the individual modules, it is a matter of ensuring the transfer of data and energy between the individual modules so that satellites can be combined as required. For this reason, RWTH Aachen University applied for a patent years ago, which has now been brought to market by spin-off iBOSS as iSSI (intelligent Space System Interface) and forms a standard interface for such systems.

Part of the interface is a development of Fraunhofer IPMS and is also known as Li-Fi GigaDock. The core of the technology is an optical wireless transceiver, a highly integrated device that enables contactless full-duplex and bidirectional data transmission with a data rate of up to 5 Gbps. The possible transmission distance of the optical data interface is 5 cm. The component can also be used for rotor-to-stator transmission, as the transceiver functions perfectly at high speeds.

Alexander Noack, Head of Development for Optical Wireless Communication, said Fraunhofer IPMS has also developed a communication module for iBOSS that has now made it into space, onto the ISS. “In addition to space travel, the component can be found in industrial communication systems, in medical technology as well as in docking applications,” Noack said.

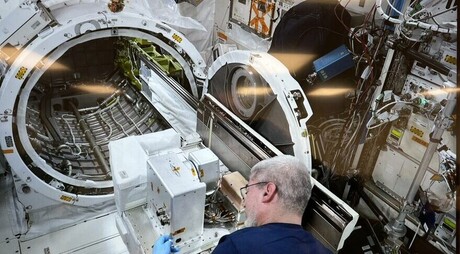

In February, the interface flew into space for testing and demonstration purposes and was mounted by a robot for the first time on the Japanese part of the ISS. The module will remain there until mid-December and prove its operational capability under vacuum conditions and the influence of radiation.

Image credit: NASA.
