IP69K rated connectors

Click2Contact

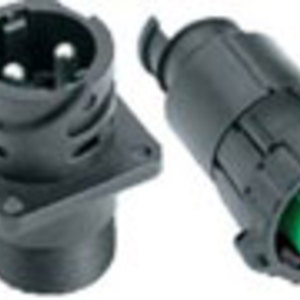

The Cannon APD connector series is designed for:

• Transportation applications such as braking systems, power distribution, battery links, Sensor applications, lighting and gear and power steering controls.
• The food and beverage processing industry where high pressure washdowns at high temperatures are required.

They are sealed to IP69K making them totally protected against the ingress of dust and capable of steam jet washdowns. The IP69K test is designed for rating protection against a high-pressure jet-stream (1160 to 1450 psi), high liquid temperature (80°C) and close nozzle distances (100 mm to 150 mm) providing excellent engine steam cleaning protection. Their operating temperature range is -40°C to 140°C.

They are designed to withstand high shock and vibration and are resistant to brake and transmission fluids along with oils, greases, salt, dirt and mud.

The APD's will maintain their integrity in the roughest environments.

The APD series is available in single, dual, 3 or 4 contacts with a maximum current rating of 30A and 6 or 7 way with 16A contacts.

A three-point bayonet coupling system with an audible and tactile feedback ensures they are mated properly even in areas of low visibility or awkward position. Colour coded versions, with unique polarization for each colour, are available to avoid mis-mating in areas where multiple connectors must be used.

Email Connector-Tech to request a catalogue if you require full data.
