Nanometric structure improves solar cell efficiency

Researchers at the Universidad Carlos III de Madrid (UC3M) have developed a nanometric structure that can cover the surface of some silicon solar panels and improve their performance by up to 40%, according to work published in the journal Solar Energy.

This new design is based on a ‘metasurface’ — a surface made up of small structures that are repeated in a pattern. Both the structures and the pattern are smaller than a wavelength of light; this means they need to be nanometric in size (millionths of a millimetre), explained researchers from the UC3M’s Displays and Photonic Applications Group (GDAF).

The researchers suggested embossing crosses on a hydrogenated amorphous thin-layer silicon solar cell; specifically, on the transparent conductive layer where the light enters. Then, dielectric material nanospheres fill these crosses. By doing so, the light that reaches the cell is effectively redirected to its active area, the place where it is transformed into an electric current by the photoelectric effect. Using this technique, more light can be captured in the solar cell, generating up to 40% more of generated current.

The researchers have been able to determine the correct material for the nanospheres, such as zinc oxide, as well as the correct size so that it’s possible to manufacture them currently: a radius of 210 nm. As explained by study co-author Ricardo Vergaz, “The key to achieving this effectively in certain ‘colours’ is choosing the correct sizes and materials. We have evaluated thousands of possible sizes and refractive indices, the most important optical property of the spheres’ material.”

Embedding the spheres into the crosses, and therefore bringing them slightly closer to the active layer below, increases their effect greatly, the researchers said. In addition, they found that the combination of the effect of the crosses and spheres is what causes this improvement. If the crosses are separated, or the spheres are reduced, the effect declines dramatically.

“We have tried to enhance the diffraction produced by the crosses by the resonant effects of the spheres themselves,” noted co-author Braulio García-Camara. “The contrasts between the refraction indices of the nanospheres and those on the lower layers allow us to exploit the effects we were looking for. Once this design can be implemented into manufacturing, a significant improvement in performance will be achieved in solar cells installed in future solar fields.”

Another advantage of this design is that the effects produced allow the thickness of the active layer to be reduced in order to generate the current efficiently, saving material during the manufacturing process. “By reducing this,” the researchers said, “the extraction of electrons generated by light is also more effective, as they have less path to cross where they could be reabsorbed.” In addition to this, the absorption that occurs in the layers surrounding the active layer has a warming effect, which can allow its defects to be reduced in the long term.

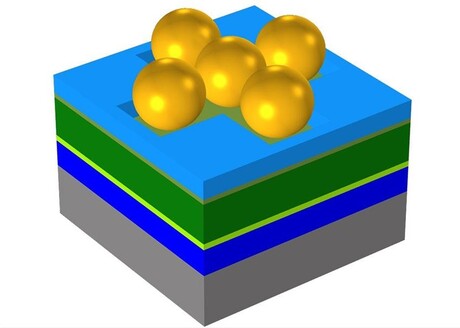

Image caption: The pattern proposed by the researchers is based on zinc oxide spheres with a radius of 210 nm deposited over crosses on thin-layer silicon solar cells. Image credit: UC3M.
