Photovoltaic power could be produced from textiles

Solar panels on building roofs are a common enough sight today, as are large-scale solar parks — but in the future, we may well see other surfaces being exploited for photovoltaic generation.

Truck tarps, for example, could be used to produce the electricity consumed by the driver when underway, or to power electronic systems used to locate trailers in shipping terminals. Similarly, conventional building facades could be covered with photovoltaic textiles in place of concrete render, or the blinds used to provide shade in buildings with glass facades could be used to create hundreds of square metres of additional surface for producing power.

At the heart of such visions are pliable, textile-based solar cells developed at the Fraunhofer Institute for Ceramic Technologies and Systems IKTS in collaboration with the Fraunhofer Institute for Electronic Nano Systems ENAS, Sächsisches Textilforschungsinstitut e.V. and industrial partners erfal, PONGS Technical Textiles, Paul Rauschert and Gilles Planen.

“There are a number of processes that enable solar cells to be incorporated in coatings applied to textiles,” said Dr Lars Rebenklau, group manager for system integration and electronic packaging at Fraunhofer IKTS. In other words, the substrate for the solar cells is a woven fabric rather than the glass or silicon conventionally used.

“That might sound easy, but the machines in the textile industry are designed to handle huge rolls of fabric — five or six metres wide and up to 1000 metres in length,” said Dr Jonas Sundqvist, group manager for thin-film technology at Fraunhofer IKTS.

Dr Rebenklau added, “During the coating process, the textiles have to withstand temperatures of around 200°C. Other factors play a key role too: the fabric must meet fire regulations, have a high tensile strength and be cheap to produce. The consortium therefore opted for a glass-fibre fabric, which fulfils all of these specifications.”

Researchers also faced the challenge of how to apply the wafer-thin layers that make up a solar cell — the bottom electrode, the photovoltaic layer and the top electrode — to the fabric. These layers are 1–10 µm in thickness; by comparison, the surface of the fabric is like a mountain range. The solution was first to apply a layer that levels out the peaks and troughs on the surface of the fabric.

For this purpose, researchers opted for a standard process from the textile industry: transfer printing, which is also used to rubberise fabrics. All the other processes have been adapted in such a way that they can be easily incorporated in standard production methods used in the textile industry. For example, the two electrodes — which are made of electrically conductive polyester — and the photovoltaic layer are applied by means of the common roll-to-roll method. The solar cells are also laminated with an additional protective layer in order to make them more robust.

Dr Jonas Sundqvist, group manager for thin-film technology, with prototype textile-based solar cells. Image© Fraunhofer IKTS.

The research team has already produced an initial prototype that has demonstrated the basic functionality of the textile-based solar cells, Dr Rebenklau said. “Right now, they have an efficiency of between 0.1 and 0.3%.”

In a follow-up project, the team are seeking to push this efficiency over the 5% mark, at which point the textile-based solar cells would prove commercially viable. Silicon-based solar cells are significantly more efficient, at between 10 and 20%; however, this new form of solar cell is not intended to replace the conventional type — merely to offer an alternative for specific applications.

In the coming months, the team will be investigating ways of enhancing the service life of the fabric-based solar cells. If all goes according to plan, the first textile-based solar cells could be ready for commercialisation in around five years.

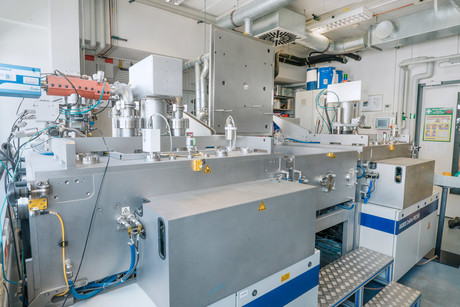

Top image: The chemical vapour deposition (CVD) coating plant used to produce functionalised textiles. Image© Fraunhofer IKTS.
