Researchers create optically active quantum dots in 2D semiconductors

Researchers at the University of Rochester have shown that defects on an atomically thin semiconductor can produce light-emitting quantum dots.

Scientists have become interested in integrated solid-state devices for quantum information processing uses. Quantum dots in atomically thin semiconductors could not only provide a framework to explore the fundamental physics of how they interact, but also enable nanophotonics applications, the researchers said.

Quantum dots are often referred to as artificial atoms. They are artificially engineered or naturally occurring defects in solids that are being studied for a wide range of applications. Nick Vamivakas, an assistant professor of optics at the University of Rochester and senior author on the paper, adds that atomically thin 2D materials, such as graphene, have also generated interest amongst scientists who want to explore their potential for optoelectronics. However, until now, optically active quantum dots have not been observed in 2D materials.

In a paper published in Nature Nanotechnology, the Rochester researchers show how tungsten diselenide (WSe₂) can be fashioned into an atomically thin semiconductor that serves as a platform for solid-state quantum dots. Perhaps most importantly, the defects that create the dots do not inhibit the electrical or optical performance of the semiconductor and they can be controlled by applying electric and magnetic fields.

Vamivakas explains that the brightness of the quantum dot emission can be controlled by applying the voltage. He adds that the next step is to use voltage to “tune the colour” of the emitted photons, which can make it possible to integrate these quantum dots with nanophotonic devices.

A key advantage is how much easier it is to create quantum dots in atomically thin tungsten diselenide compared to producing quantum dots in more traditional materials like indium arsenide.

“We start with a black crystal and then we peel layers of it off until we have an extremely thin layer left, an atomically thin sheet of tungsten diselenide,” said Vamivakas.

The researchers take two of these atomically thin sheets and lay one over the other. At the point where they overlap, a quantum dot is created. The overlap creates a defect in the otherwise smooth 2D sheet of semiconductor material. The extremely thin semiconductors are much easier to integrate with other electronics.

The quantum dots in tungsten diselenide also possess an intrinsic quantum degree of freedom - the electron spin. This is a desirable property, as the spin can act as a store of quantum information as well as provide a probe of the local quantum dot environment.

“What makes tungsten diselenide extremely versatile is that the colour of the single photons emitted by the quantum dots is correlated with the quantum dot spin,” said first author Chitraleema Chakraborty. Chakraborty added that the ease with which the spins and photons interact with one another should make these systems ideal for quantum information applications as well as nanoscale metrology.

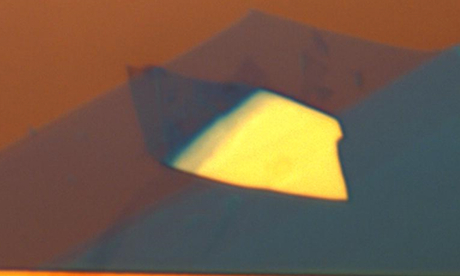

Image caption: Optical micrograph of electrically contacted tungsten diselenide. This atomically thin semiconductor is the host of an new type of quantum dot that exhibits voltage controlled single photon emission. Image courtesy of Chakraborty et al.
