LED-fitted soft eye contact lenses

Ulsan National Institute of Science & Technology (UNIST) scientists have combined graphene with silver nanowires to form a thin, transparent and stretchable electrode which overcomes the weaknesses of each individual material, resulting in a new class of electrodes with widespread possible applications including picture taking and scanning using soft contact lenses. This new class of hybrid transparent and stretchable electrode paves the way for flexible displays, solar cells and electronics.

As an in vivo study, this contact lens was worn by a live rabbit eye for five hours and no abnormal behaviour, such as bloodshot eye or the rubbing of eye areas were observed in the live rabbit. Wearing eye contact lenses, picture-taking and scanning, is not science fiction anymore.

Transparent electrodes have been widely used in things like touch screens, flat-screen TVs, solar cells and light-emitting devices. Commonly made from indium tin oxide (ITO), it is brittle and cracks thus losing functionality if flexed. It also degrades over time and is expensive due to the limited quantities of indium metal.

As an alternative, the networks of randomly distributed mNWs have been considered as promising candidates for next-generation transparent electrodes, due to their low-cost, high-speed fabrication of transparent electrodes. However, the number of disadvantages of the mNW networks limited their integration into commercial devices. They have low breakdown voltage, typically high NW-NW junction resistance, high contact resistance between network and active materials, material instability and poor adhesion to plastic substrates.

Graphene is also well known as a good candidate for transparent electrodes because of their unique electrical properties and high mechanical flexibility. However, scalable graphene synthesis methods for commercialisation produces lower quality graphene with individual segments called grains which increases the electrical resistance at boundaries between these grains.

Silver nanowires, on the other hand, have high resistance because they are randomly oriented like a jumble of toothpicks facing in different directions. In this random orientation, there are many contacts between nanowires, resulting in high resistance due to large junction resistance of nanowires.

The hybrid material presents a high electrical and optical performance with mechanical flexibility and stretchability for flexible electronics. The hybrid transparent electrode has a low ‘sheet resistance’ and high transmittance. There’s almost no change in its resistance when bent and folded. Where the ITO is bent, its resistance increases significantly. Additionally, the hybrid material preserves its electrical and optical properties against thermal oxidation condition.

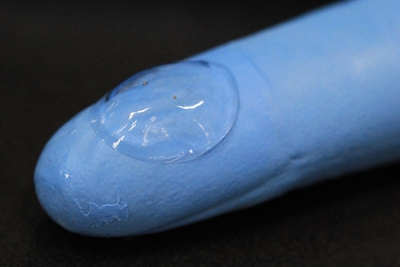

The graphene-mNW hybrid structure developed by the UNIST research team is a new class of electrodes and may soon find use in a variety of other applications. The research team demonstrated inorganic light-emitting diode (ILED) devices fitted on a soft eye contact lens using the transparent, stretchable interconnects of the hybrid electrodes as an application example.

The research was led by Jang-Ung Park, professor of the School of Nano-Bioscience and Chemical Engineering at UNIST. “We believe the hybridisation between two-dimensional and one-dimensional nanomaterials presents a promising strategy toward flexible, wearable electronics and implantable biosensor devices, and indicate the substantial promise of future electronics,” said Prof Park.
