Flexible flash memory suitable for foldable electronics

Korean researchers have developed ultraflexible organic flash memory that is bendable down to a radius of 300 μm. Described in the journal Nature Communications, the memory exhibits a long projected retention rate with a programming voltage on par with the present industrial standards.

Flash memory is a non-volatile, transistor-based data storage device that has become essential in most electronic systems in daily life. With straightforward operation mechanisms and easy integration into NAND or NOR array architecture, it has been established as the most successful and dominant non-volatile memory technology by far.

But despite promising demonstrations in the early stages of organic electronics, the overall progress in this field has been slower than that of thin-film transistors (TFTs) or other devices based on flexible materials. It has been challenging, in particular, to develop flash memory that simultaneously exhibits a significant level of flexibility and performance.

The problem is mainly due to the scarcity of flexible dielectric layers, which are responsible for the tunnelling and blocking of charges. The solution processing used for the preparation of most of the polymeric dielectric layers also makes it difficult to use them in flash memory due to the complexity involved in the formation of the bilayer dielectric structure, which is the key to flash memory operations.

Researchers from the Korea Advanced Institute of Science and Technology (KAIST) sought to overcome these hurdles and realise highly flexible flash memory by employing thin polymeric insulators grown with initiated chemical vapour deposition (iCVD), a vapour-phase growth technique for polymers that was previously shown to be promising for the fabrication of flexible TFTs. It was further shown that these iCVD-based polymeric insulators, when coupled with rational device design and material choice, can make a significant contribution to flash memory as well.

The structure of the flexible flash memory.

Memory using conventional polymer insulating films has often required a voltage as high as 100 V in order to attain long memory retention. If the device is made to operate at a low voltage, the retention period is less than a month in length. The KAIST team, however, succeeded in producing flash memory with programming voltages around 10 V and a projected data retention time of over 10 years, while maintaining its memory performance even at a mechanical strain of 2.8%. This is a significant improvement over the existing inorganic insulation layer-based flash memory that allowed only a 1% strain.

The team demonstrated the virtually foldable memory devices by fabricating the proposed flash memory on a 6 μm-thick ultrathin plastic film. In addition, they succeeded in producing the memories on printing paper, opening a way for disposable smart electronic products such as electronic paper and electronic business cards.

“This study well illustrates that even highly flexible flash memory can be made to have a practically viable level of performance, so that it contributes to full-fledged wearable electronic devices and smart electronic paper,” said Professor Seunghyup Yoo, joint leader of the research. He and his team said their memory technology can be applied to non-conventional substrates, such as plastics and papers, to demonstrate its feasibility over a wide range of applications.

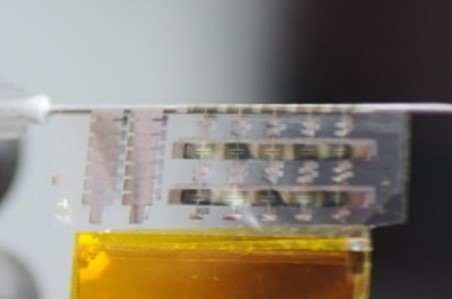

Top image caption: Foldable flash memory.
