Plugging the gaps to boost perovskite performance

A multifunctional molecule that plugs various atomic-scale defects in perovskite solar materials can significantly boost the longevity and electrical output of this promising solar technology, researchers from King Abdullah University of Science and Technology (KAUST) have shown.

Perovskites are an alternative solar-cell material to silicon. They typically comprise a combination of negatively charged iodine or bromine ions and positively charged lead and organic ions. Adjusting the ion combination can generate wide-bandgap perovskites that capture the solar wavelengths that silicon does not efficiently absorb. This suggests the two materials could be combined in tandem cells to capture even more energy from the Sun.

However, perovskites inevitably feature defects, such as where a particular ion did not slot into place during fabrication, leaving a gap in the structure. These reactive sites can contribute to rapid performance decline — unless they can be plugged.

“Defect passivation is very important for improving the long-term stability of perovskite solar cells,” said KAUST researcher Furkan Isikgor.

Defect sites in perovskites can be positively or negatively charged depending on which ion is missing, but chemical additives for defect passivation can typically plug one type of defect or the other. A molecule called phenformin hydrochloride (PhenHCl) overcomes this problem, Isikgor and colleagues have shown.

“PhenHCl works very well owing to its multifunctional structure,” Isikgor said. The molecule consists of an electro-positive ammonium head group that can plug negatively charged defects and an electro-negative amine and imine group body to plug positive gaps.

The researchers showed that PhenHCl boosted the power conversion efficiencies (PCEs) of wide-bandgap perovskites from 16.7% in untreated cells up to 20.5% in treated cells. “Moreover, PhenHCl passivation improves the PCE of textured perovskite–silicon tandem solar cells from 25.4% to 27.4%,” Isikgor said.

PhenHCl passivation also significantly improved the stability of the perovskite solar cell. Isikgor revealed, “Under continuous light soaking, the PhenHCl-passivated device retained 80% of its post-burn-in efficiency for around 106 hours of operation.” The untreated device retained 80% of its post-burn-in efficiency for only five hours.

The study was published in the journal Joule and led by KAUST’s Stefaan De Wolf, who said, “Our simple holistic defect-passivation strategy has drastically improved the semiconductor quality of solution-processed perovskites.”

He added, “Passivating the different types of defects that may be present in perovskites with a single molecule is highly attractive for industry.”

The next step will be to integrate PhenHCl passivation with scaled-up perovskite production. “Simultaneously,” De Wolf said, “we are working on further improvements in device performance and stability through extensive outdoor testing.”

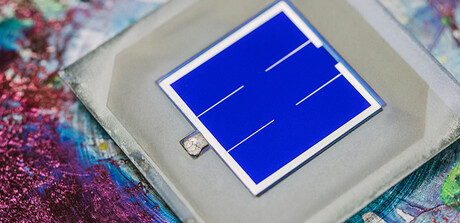

Image ©2021 KAUST; Anastasia Serin.
